Updating Multiline Text Field Properties in SharePoint Using PowerShell

Introduction

Managing multiline text fields in SharePoint can be tricky, especially when certain field properties are not visible or editable at the library/list level, even though they are available at the site level.

For example, at the site level, you can configure properties such as:

  • Append Changes to Text
  • Number of Lines
  • Field Type: Plain Text, Rich Text, or Enhanced Rich Text

However, these settings may not appear at the library/list level, as shown below:

Site Level

Site level settings for multi line text field

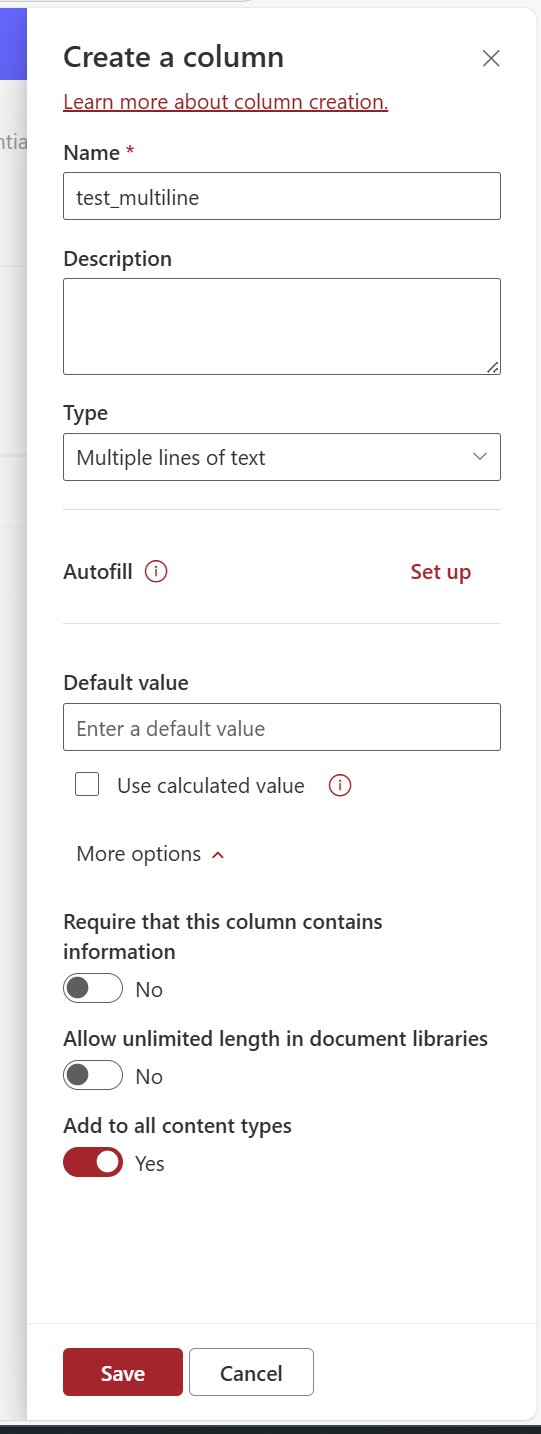

Library Level

Library level settings for multi line text field

If you need to update these settings at the library/list level, the only way to achieve this is by using PowerShell.

Updating Multiline Text Field Properties with PnP PowerShell

Below is a sample PowerShell script that demonstrates how to update multiline text field properties using PnP PowerShell.

Sample Script

param (
    [Parameter(Mandatory = $true)]
    [string]$Url,

    [Parameter(Mandatory = $true)]
    [string]$ListName,

    [Parameter(Mandatory = $true)]
    [string]$FieldName,

    [Parameter(Mandatory = $true)]
    [ValidateSet("EnhancedRichText", "PlainText", "RichText")]
    [string]$TextType = "EnhancedRichText",

    [Parameter(Mandatory = $true)]
    [ValidateSet("Yes", "No")]
    [string]$AppendOnly = "Yes"
)

# Connect to SharePoint site
Connect-PnPOnline -Url $Url

# Map the TextType to corresponding RichTextMode and RichText values
switch ($TextType) {
    "EnhancedRichText" {
        $RichTextMode = "FullHtml"
        $RichText = $true
    }
    "PlainText" {
        $RichTextMode = "Compatible"
        $RichText = $false
    }
    "RichText" {
        $RichTextMode = "Compatible"
        $RichText = $true
    }
}

# Convert AppendOnly parameter to boolean
$AppendOnlyValue = if ($AppendOnly -eq "Yes") { $true } else { $false }

# Update field properties
Set-PnPField -List $ListName -Identity $FieldName -Values @{
    AppendOnly = $AppendOnlyValue
    RichTextMode = $RichTextMode
    RichText = $RichText
    NumLines = "6"
    UnlimitedLengthInDocumentLibrary = $false
} -ErrorAction Stop

# Handle properties that cannot be updated directly
$Field = Get-PnPField -List $ListName -Identity $FieldName -ErrorAction Stop
$FieldSchemaXml = [xml]$Field.SchemaXml

if ($TextType -eq "EnhancedRichText" -or $TextType -eq "RichText") {
    $FieldSchemaXml.Field.SetAttribute("RichTextMode", $RichTextMode)
    $FieldSchemaXml.Field.SetAttribute("NumLines", "8")
}

Set-PnPField -List $ListName -Identity $FieldName -Values @{
    SchemaXml = $FieldSchemaXml.OuterXml
} -ErrorAction Stop

Key Notes

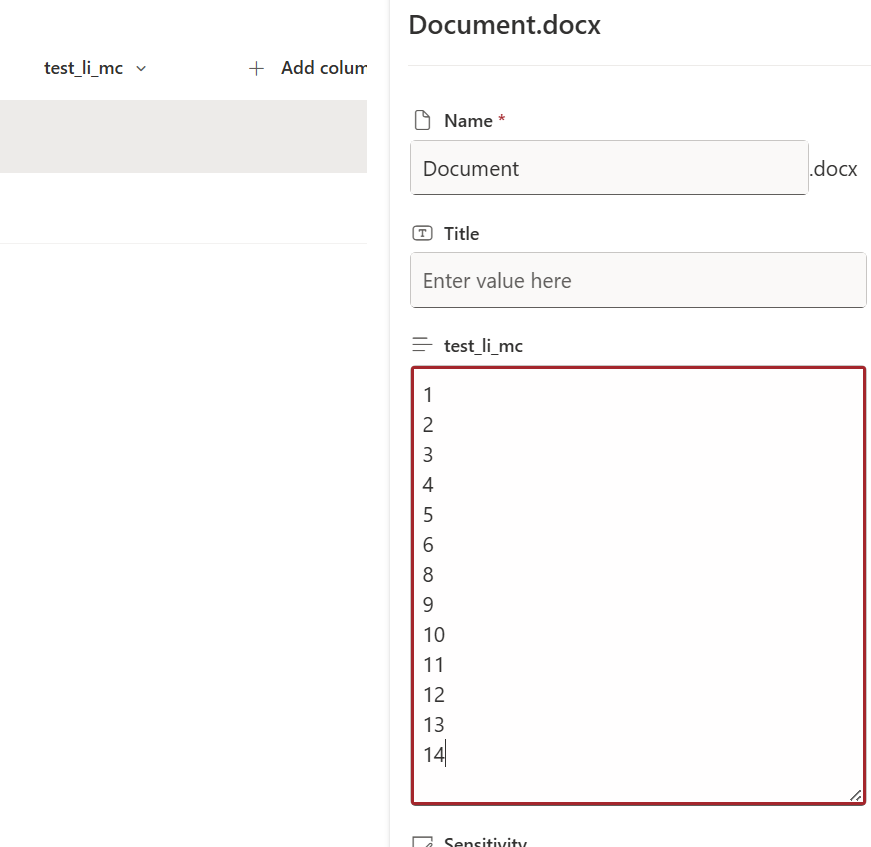

  1. Number of Lines:
    The “Number of Lines” property does not seem to have any visible effect on the field.
    Number of lines does not matter

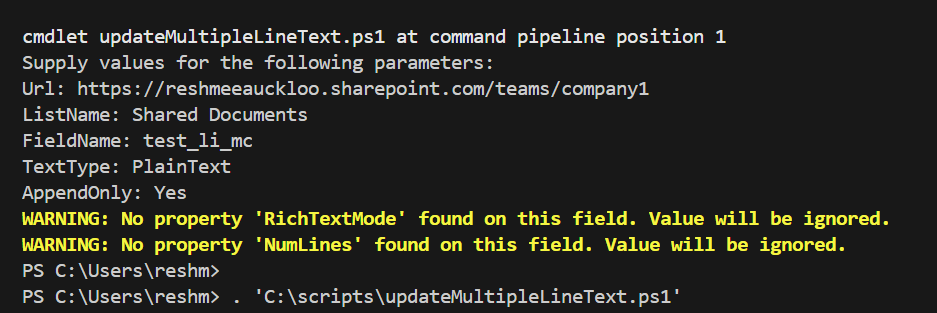

  2. RichTextMode and NumLines:
    These properties cannot be updated directly using Set-PnPField. Instead, you need to modify the SchemaXml property.
    RichTextMode, Numlines can’t be edited directly

  3. UnlimitedLengthInDocumentLibrary:
    This property, also known as “Allow unlimited length in document libraries,” enables saving more than 255 characters in a field.

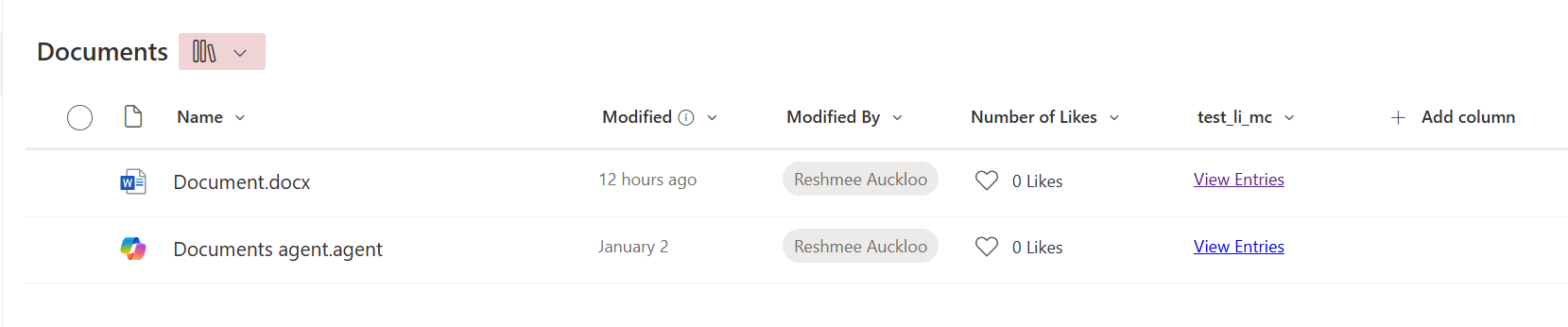

  4. Append Changes to Text:
    When this setting is enabled, “View Entries” is displayed within the multiline text field as a link to the display form.
    View Entries

Conclusion

Using PowerShell, you can easily update multiline text field properties in SharePoint that are otherwise inaccessible at the library/list level. This script is particularly useful for administrators who need to configure fields programmatically across multiple lists or libraries.
